Brand Name : KSPACK
Model Number : JGY
Certification : ISO CE
Place of Origin : CHINA
MOQ : 1SET
Price : 12000-65000USD/SET
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 30SETS/MONTH
Delivery Time : 30DAYS AFTER GETTING DEPOSIT
Packaging Details : WOODEN CASE
TYPE : corrugated carton box paper flexo ink printer die cutting machine
SPEED : 60PCS/MIN
PAPERBOARD THICKNESS : 2-12MM
COLORS : 1-5COLORS
MACHINE SHELL : 30-50MM
PRINTING PLATE : AUTOMATIC OR MANUAL

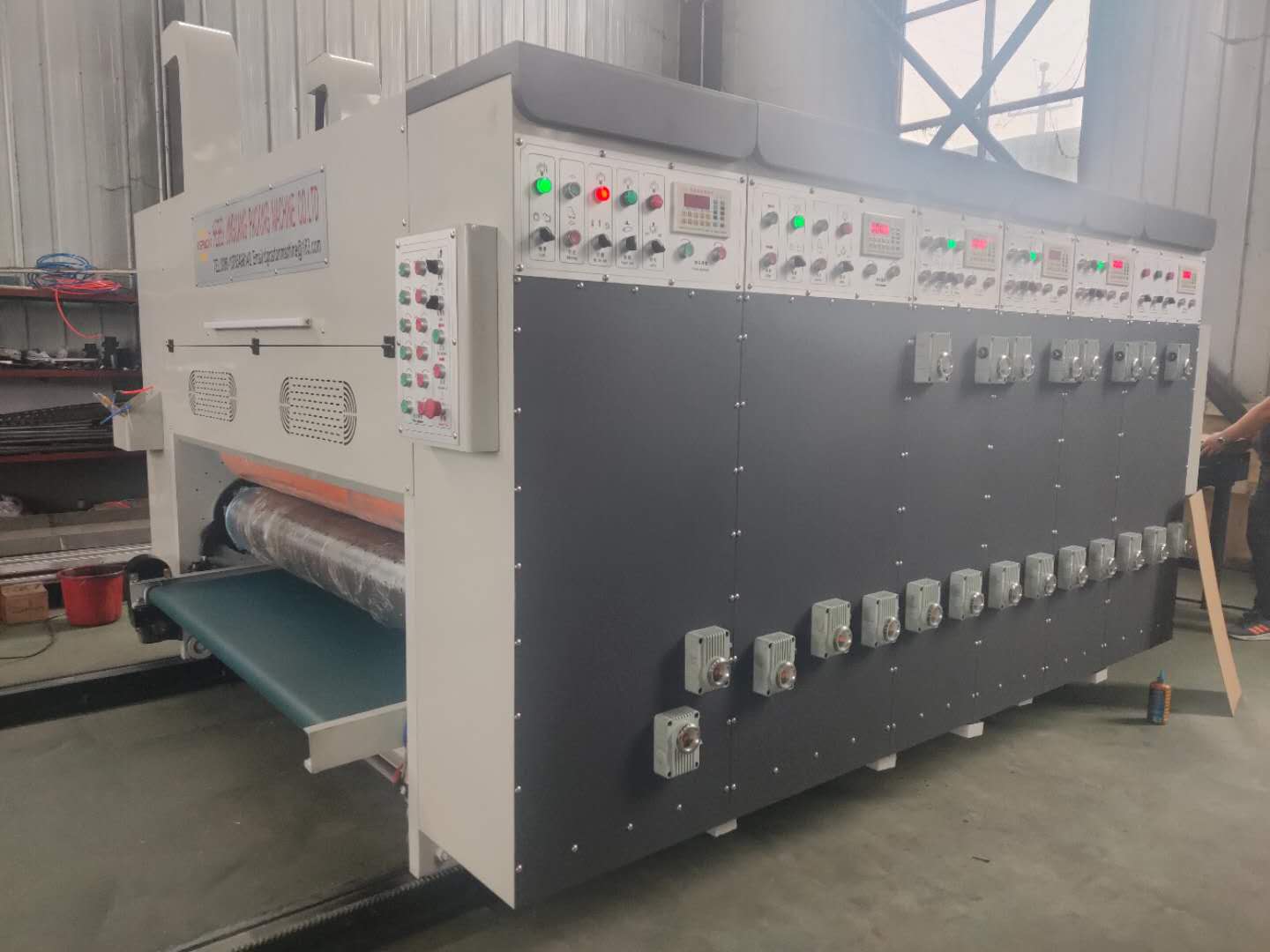

corrugated carton box paper flexo ink printer die cutting machine
Ø 1,rubber cushion imported from Taiwan
Ø 2,Double-worm abrasire belt cushion correction facility
Ø 3,Cushion axial floating automatically to improve the utilization rate of
cushion.
Ø The range of floating is 0-20mm (from middle to left or right )
Ø 4,Speed difference self-compensating function
Ø 6,Die cutting phase is adjusted by electric
Model | YSF-S 1200 | YSF-S1450 | YSF-S1650 |
Diameter of roller | 400MM | 480mm | 530MM |
The max speed | 60PCS | 60pcs/min | |
The max feeding size | 1200X(2200-2800) | 1450x(2200-2800)mm | 1650X(2200-2800) |
Slot Min feeding size | 330X600MM | 350X600mm | 380X600MM |
Effective printing size | 1200X(2000-2600) | 1450x(2000-2600)(mm | 1650X(2000-2600) |
The effective thickness | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) |
Printing plate thickness | 6±0.1 | 6±0.1 | 6±0.1 |
The max depth of slot | 314 | 370 | 416 |
![]() |
Corrugated Paper 60pcs/Min Flexo Printing Equipment For Carton Box Images |
