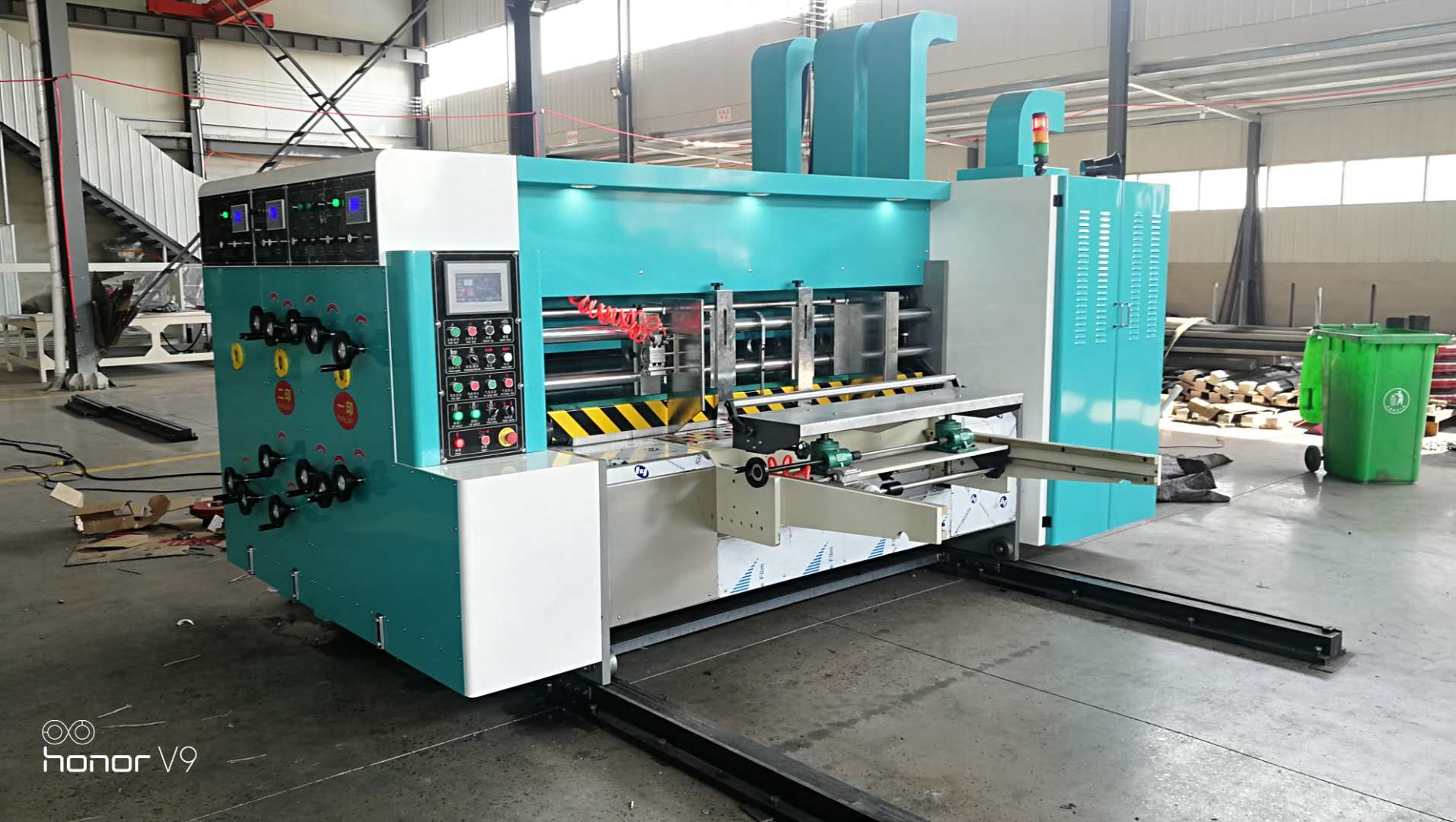

Corrugated Carton Flexo Printer Box Slotter Die Cutter Automatic
1.Printer slotter die cutter machine technical parameter
A :Die cutter part - optional for printer slotter die cutter machine
(1) The speed difference compensation device can control the linear speed of the surface of the rubber pad roller (the outer diameter of the rubber pad is continuously reduced during use). The compensation device can make the linear speed of the rubber roller roller completely controlled by the die cutter. The die-cut carton, the carton and the die shape are exactly the same.
(2) The rubber pad grinding device can set a certain amount in the production die cutting. When the rubber pad needs to be repaired, the sand roller motor can be started, and the main body is also opened for grinding, so that the rubber pad can be used repeatedly. The use of the pad is improved, the die cutting pressure is also reduced, and the wear of mechanical parts and bearings is greatly reduced.
(3) Double cover on both sides of the main unit for easy maintenance.
(4) Free plate slot size is 130mmX50mmX50mm
B:Printing part for printer slotter die cutter machine
(1) The outer diameter is φ156 mm.
(2) the surface of the steel pipe is ground, pressed netting, hard chrome plating.
(3) do balance correction, and run smoothly.
(4)The number of nets is 180, 200, 220, 250, 300.
(5)with the paper feeding system pneumatic automatic lifting device. (The anilox roller is lowered in contact with the plate during paper feeding, and the anilox roller is lifted and separated from the plate when the paper feed is stopped).
(6)The anilox roller is equipped with a wedge type overrunning clutch, which is convenient and quick to disperse ink and wash ink.
C:Lead edge feeder part for printer slotter die cutter machine
(1), suction auxiliary paper feeding, - according to different bending conditions of the paperboard, the air volume can be adjusted to ensure smooth paper feeding.
(2), the paper is lifted and the paper is driven by the cylinder, which is quick and labor-saving.
(3) Adopt the leading edge roller feeding system.
(4), the side baffle and the rear baffle position are electrically adjusted; the front baffle gap is manually adjusted.
(5) Separate sheet feeding device (Continuous or sheet feeding can be selected as needed).
(6)paper feed counter, set and display the production quantity
D:Slotter part for printer slotter die cutter machine
(1) The shaft diameter is φ71 mm and the surface is ground. Hard chrome plated for smooth movement.
(2)do balance correction, and run smoothly.
(3) Manual adjustment of the pressure wheel gap dial, the adjustment range is 0---12mm. 2, slotted tool holder traverse adjustment mechanism
2. Printer slotter die cutter machine applications
Carton box slotting machine Make corrugated carton box from corrugated paper , like pizza box , fruit box ,shipping box , and ect ...
3.Printer slotter die cutter machine size
| Item | Unit | 2200 Model |
| carton box slotting Machine size | mm | 4000*3000*3000(L*W*H) |
| Carton box slotting machine wall board size | mm | 2200 |
| Carton box slotting machine paperboard size | mm | 2000*900 |
| Carton box slotting machine min size | mm | 450*220 |
| carton box slotting machine Print size | mm | 1800*950 |
| carton box slotting machine Print plate thickness | mm | 3-8 |
| carton box slotting machine Max speed | sheets/min | 180 |
4.Advantage of our printer slotter die cutter machine
11 years export experience
Export to more than 100 countries
Export more than 100 coutainers capacity
Professional international sales more than 10 persons
Professional sale team , technical team and after sales service team
5.Delivery and service
For carton box slotting machine , we have it in stock . can meet you urgent order .
Before place order , welcome your vist and test machine , we can pick you up from airport one year free guarantee , whole life after sales service
6.Company info production
KS Pack Hebei Jinguang Packing Machine Co.,Ltd , , is a professional corrugated carton printing equipment and related machinery for carton production over ten years . Our Company is located in the Lisiwei Industrial part ,Dongguang county Hebei province , China .
Our main products are corrugated carton box printing , slotting , die cutting machine (semi auto , automatic )
Middle high speed corrugated paperboard production line , automatic folder gluer machine , stitching machine , flute laminator , thin blade slitter , partition machine , automatic assemble machine , binding machine and so on .
Our products not only sale domestic market well and also gain plenty of export experience . Our products exported to Russia , middle east , Africa , Asia and so on . Our product quality and enterprise credit standing in approved by our customers home and aboard .
