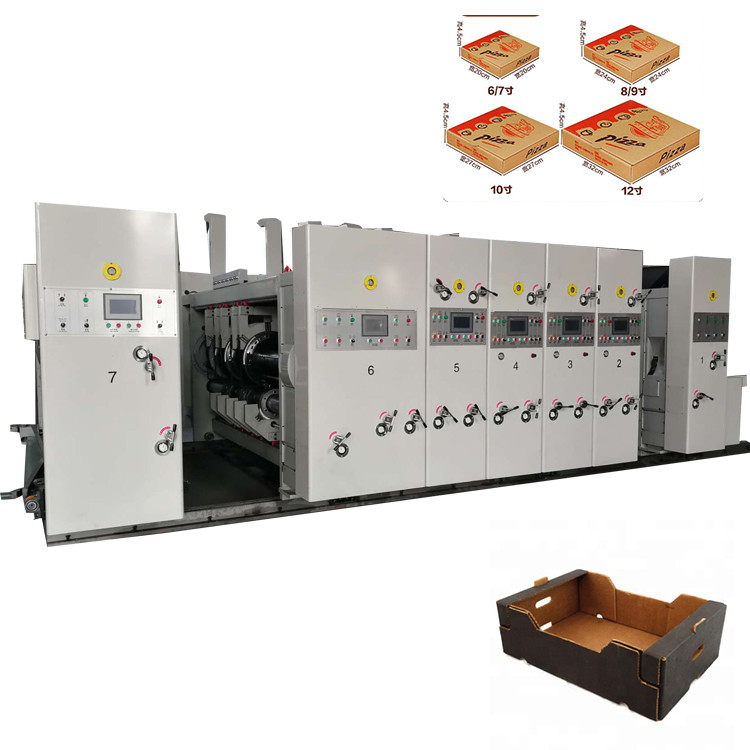

automatic corrugated box flexo 4 colors printer die cutting pizza box printing machine
Ø 1.The device self-locking function pre-loading quick-adjusting mechanism ensures long-term precision between the disc and the shaft, and slows the cracking of the paper when the line is pressed.
Ø 2.The pressure line wheel adopts the latest design pre-pressing pressure roller to protect the plasticity of the cardboard from damage.
Ø 3. With PLC programmable control, the left and right synchronous motorized electric axial movement, so that the upper and lower pressure roller, the upper and lower slotting knife, synchronize
Ø Adjustment, electric boxing high function, and memory storage function.
Ø 4.Planetary gear and gear phase adjustment mechanism with digital display function, electric adjustment of slotted phase and slotted box height.
Ø Select the slotting knife of high-quality alloy steel, the width of the toothed blade is 7mm.
Ø The lubrication wear-resistant guide block is arranged to ensure the correct displacement of the pressure roller and the slotted cutter wheel and increase the durability.
Ø 7. The slotted panel operation part is provided with a paper feed on, off and main unit electric button, which has multi-point adjustment operation function.
| MODEL | KYM Series High Speed Printer Diecutter |
| PRINTER COLOR | MULTI COLOR |
| MNACHINE SIZE | WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM |
| MACHINE DESIGN SPEED | DESIGN SPEED 180PCS /MIN |
| WORK SPEED | 150PCS /MIN |
| MACHINE WALL BOARD SIZE(mm) | 60 |
| GERA THICKNESS(mm) | 50 |
| MAX PASSING PAPER SIZE(mm) | 1450 X(1800/2000/2200/2400/2600/2800MM) |
| MIN PAPER PASSING SIZE(mm) | 400X860MM |
| SKIP PAEER SIZE(mm) | 1600X(1800/2000/2200/2400/2600/2800MM) |
| MAX PRINT SIZE (mm) | 1400X(1600/1800/2000/2200/2400/2600MM) |
| THINKCNESS OF THE PLATE (mm) | 3.2---7.2 |
| BOARD THICKNESS(mm) | 3---12 |
| BOARD PRINT ACCURATE (mm) | PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5 |
| WORKING POWER(km) | 25 |
| TOTAL POWER(km) | 43 |
