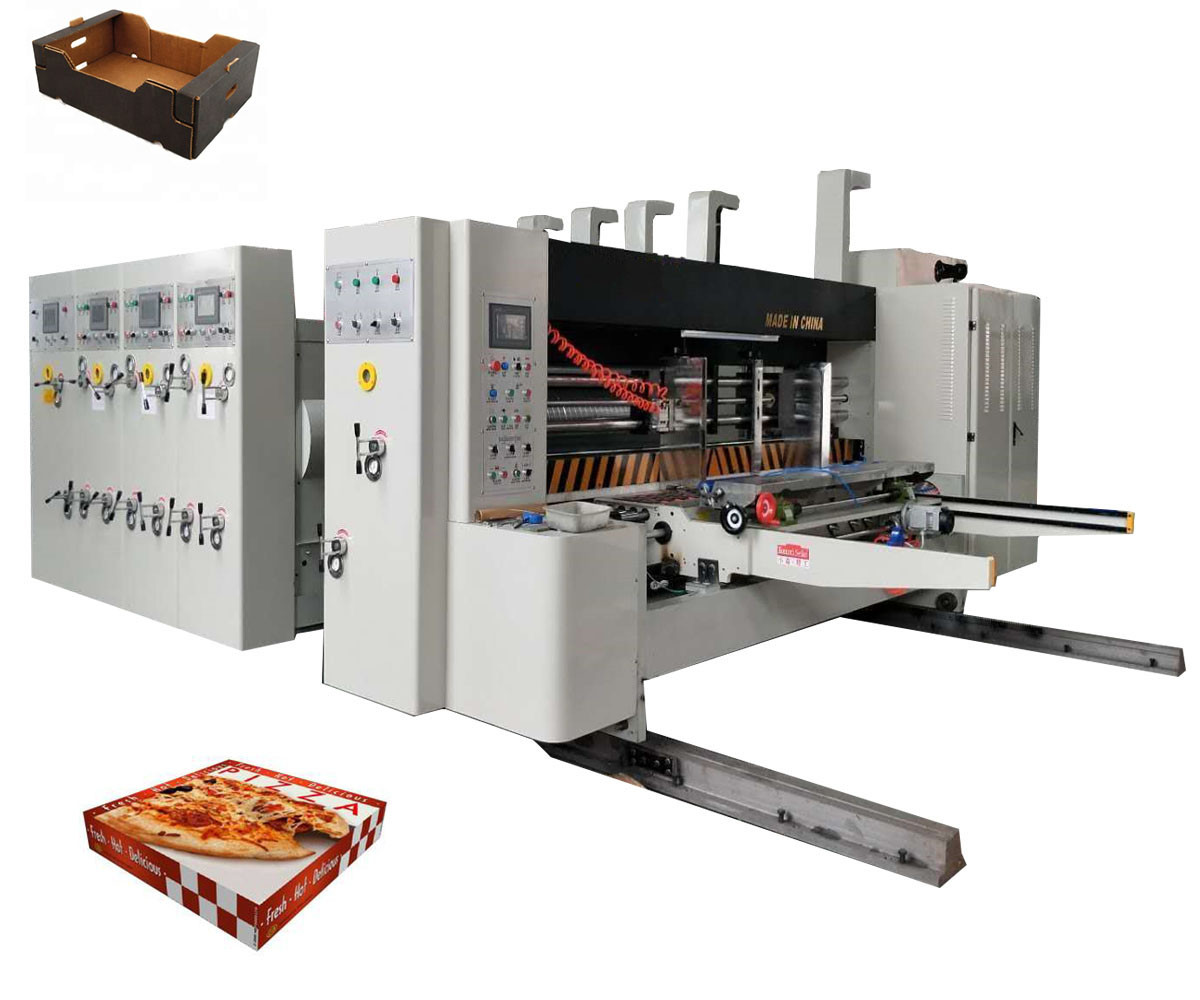

Slotter Die Cutter 2mm Plc Multi Color Flexo Printing Machine

Name: Slotter Die Cutter 2mm Plc Multi Color Flexo Printing Machine
Brand: kspack
Price: 12500 USD

Buy cheap Slotter Die Cutter 2mm Plc Multi Color Flexo Printing Machine product

Brand Name : kspack

Model Number : JGY

Certification : ISO ,CE

Place of Origin : cangzhou

MOQ : 1set

Price : 12500-65000usd/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20sets per month

Delivery Time : 30-60days

Packaging Details : wooden case,film ,container

name : Pizza Box Diecutter Machinery

Speed : 100-200pieces/min

Voltage : 220/380/400V

machinename : Automatic Flexo Printer Slotter Die Cutter

Color : 1-5colors

keyword1 : Automatic Flexo Printer Slotter Die Cutter

Warranty : 2 years

printer roller : steel print roller

paperboard thickness : 2-12mm

PLC : ys

Contact Now

Automatic Flexo Printer Slotter Die Cutter Pizza Box Diecutter Machinery

1. The machine clutch:

1) the machine clutch electric control with alarm, moving last warning bell ring, Ensure workers safety.

2) Pneumatic interlocking device

2. Lead Feeder paper system

1) the suction feeder paper,fan 7.5 kw, at different levels can be bent according to the board, air volume adjustment, ensure feeding smoothly.

2) Carry paper,fall paper adopt cylinder push, move quick and powerful. 3)Side panel for manual adjustment, front and back panel are manual adjustment.

4) Taiwan super resistance to lead feeding wheel, Perishable Wear Resistant. 5)skip feeding paper device,( can choose according to need continuous or skip feeder paper).

MNACHINE SIZE	WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM
MACHINE DESIGN SPEED	DESIGN SPEED 150PCS /MIN
WORK SPEED	80-120PCS /MIN
MACHINE WALL BOARD SIZE(mm)	50
GERA THICKNESS (mm)	50
MAX PASSING PAPER SIZE(mm)	1200 X(1800/2000/2200/2400/2600/2800MM) for 408 diameter 1450X(1800/2000/2200/2400/2600/2800MM) for 480 diameter
MIN PAPER PASSING SIZE (mm)	420x860mm(for 480diameter ) 380X860MM( for 408 diameter)
SKIP PAEER SIZE (mm)	1350X(1800/2000/2200/2400/2600/2800MM) for 408 diameter 1600X(1800/2000/2200/2400/2600/2800MM) for 480 diameter
MAX PRINT SIZE (mm)	1200/1400X(1600/1800/2000/2200/2400/2600MM)
THINKCNESS OF THE PLATE (mm)	3.2---7.2
BOARD THICKNESS (mm)	3---12
BOARD PRINT ACCURATE (mm)	PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5
生产时功率(km)working power	30KW
总功率(km)total power	40KW
