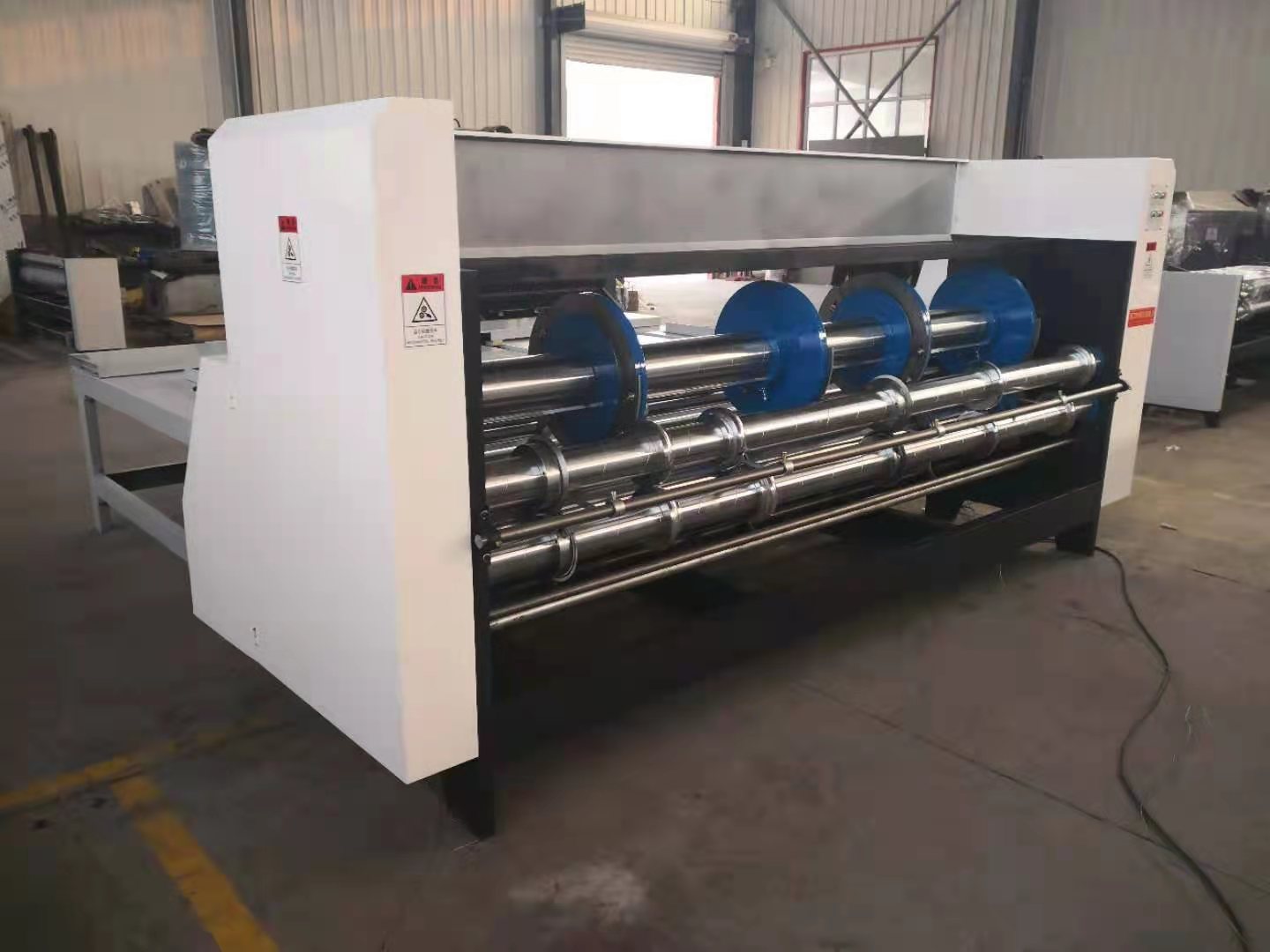

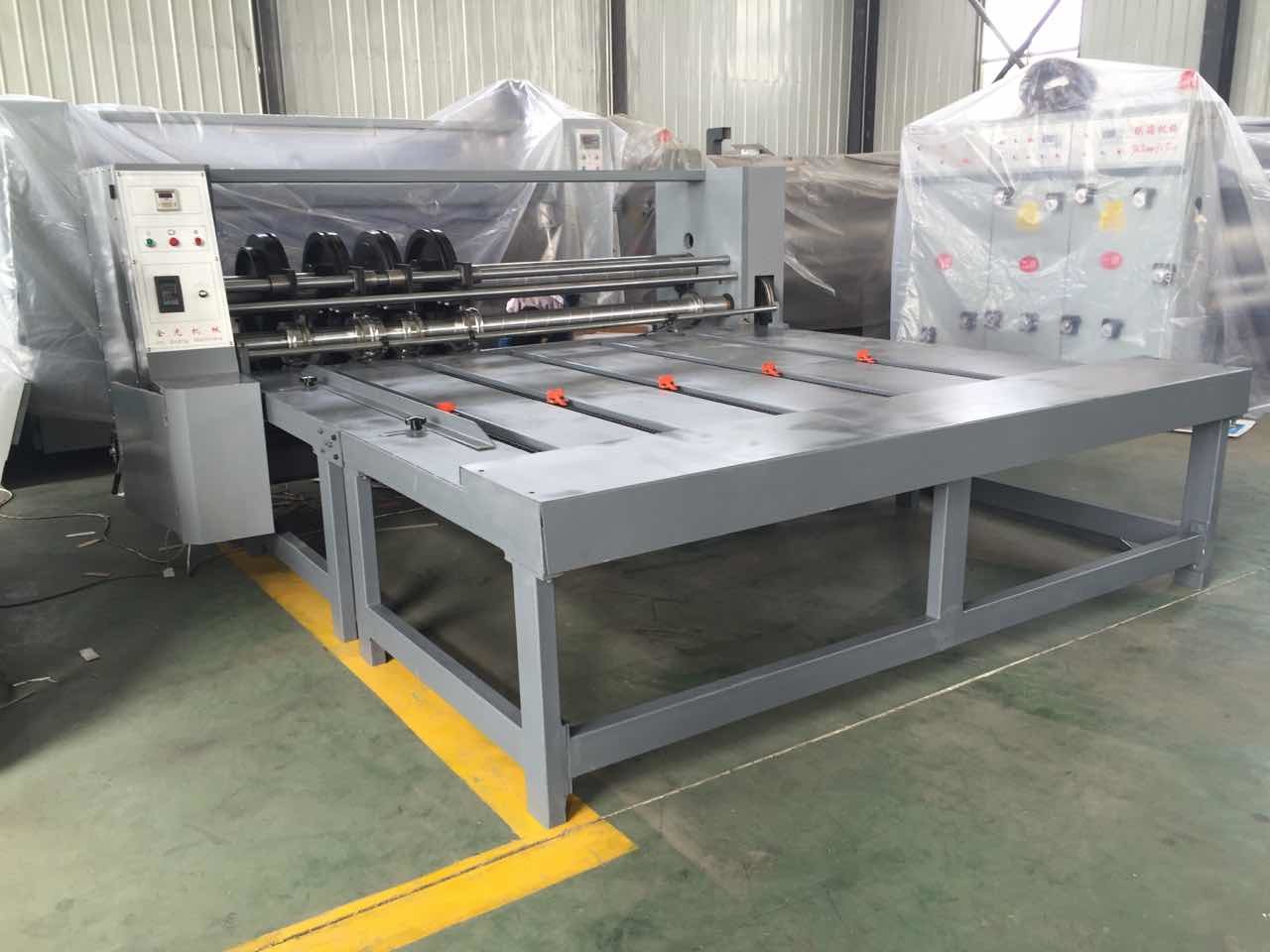

Semi auto chain feeder Synchronous adjustment corrugated carton box rotary slotting machine
Machine characteristics
This series of FYQ-B corrugated board slotter machine , is comprehensive production equipment which integrate several process such as cutting corner,crease line and slicing the side .option the handle make
the machine characteristic:
1.feeding single paperboard by hand ,general flexual paperboard is applicable too.
2. phase mutually:
3. Slicing the Corner, opens the slot knife can 360. positive turn and reverse turn,circularly adjusted ,with manual handle,convenient to adjust ,reliable to lock and open slot precisely ,the adjusting function designed compactly durable and long using life.
4. phase electricity :
Open slot knife 360. positive and reverse turn ,adopt motor micro-adjusting equipment ,convenient to operate, accurate adjusted size ,lock reliable and slotting accuracy.
5. Slot knives with crease movement together , convenient adjust the machine .save the machine adjust time
6. Machine roller all chrome plated after grinding , increase the roller hardness and use life .
| Size | Passing paper size | The min size | Depth of slot | Speed pcs/min | Thickness of pass board | Feeding way |
| FYQ-1800 | 900X1800mm | 200*600mm | 225mm | 0-60 | 2-11mm | Chain |
| FYQ-2000 | 900X2000mm | 200*600mm | 225mm | 0-60 | 2-11mm | Chain |
| FYQ-1800 | 1270×1800mm | 320*800mm | 317mm | 0-50 | 2-11mm | Chain |
| FYQ-2000 | 1270×2000mm | 320*800mm | 317mm | 0-50 | 2-11mm | Chain |
| FYQ-2200 | 1470×2200mm | 340*800mm | 367mm | 0-45 | 2-11mm | Chain |
| FYQ-2500 | 1470×2500mm | 340*800mm | 367mm | 0-45 | 2-11mm | Chain |
| FYQ-2800 | 1600×2800mm | 360*800mm | 400mm | 0-40 | 2-11mm | Chain |
Machine video :https://youtu.be/ChzXjzImwdg
