Electric mill roll stand
※Structural features:
★ Symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper
★ Electric o clamping, release, moving on the left and right
★ Brake adjustment using disc plate system.
★ With two-stage automatic expansion of the paper clip, clamp head size 3 inch
※Technical parameters:
1. Paper stand active model: Mechanical electrical
2. Clamp paper scape : max 1450mm, min 300mm
3. Clamp diameter : max ￠1400mm
4. Single side max load weight : 1500kgs
5. Power : 380 volt ,50hz
6. Turn over motor power : 1.5kw /set clamp motor power : 0.75kw 4 set
7. Manual brake model ( option pneumatic brake model )
8. Electrical brand : DELIXI CHIT
9. Machine weight : 1.3T
SF-280S Fingerless single facer
1)Introduction:
Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.
2)Characteristics:
1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.
6. Manually regulate or electrically regulate the display device.
7. Lubricated by high temperature lubricate grease.
8. Surface of all dancing rolls and preheating rolls is grind-ed and chrome-plated.
9. Pressure roll is medium- frequency quenched and chrome-plated.
10. Width 1400mm
11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
12.Chain drive
13.Adjust glue by electrical , not manual .
Computer heavy type sheet cutter
Computer sheet cutter that is equipment for slit and cross cut the 2 ply corrugated board, this machine change order time short ,cut accurate is high ,work speed is higher ,change order quick will waste the paper less .
| Name | Heavy model | Max width of cardboard | 1400/1700/2000 mm |
| Length of cardboard | 10mm-2400mm | Times of cutting cardboard | 80 knives /mins |
| Thickness | 50-500g | Motor | 4.0w |
| Tolerance | ±1mm | Machine size | 2700x2500x1500 |
| Frenquency | Alfa | Touch screen | Weilun |
| Knives | Nanjing | Frequency motor | 2 set |
| Electrical | Chit | Bearing | FK |
| Speed change motor | P 3 | Rotary knives | Big rotary knives body |
| Gear | Big gear | Roller | 215 |
| Rubber roller | 180 | Slitter roller | 86 |
| Wall board thickness | 100mm | | |
The machine uses the touch screen design ,using the variable frequency motor speed control, servo drive control, reduce failure rate of the mechanical transmission when use the machine ,cutting accuracy more accurate

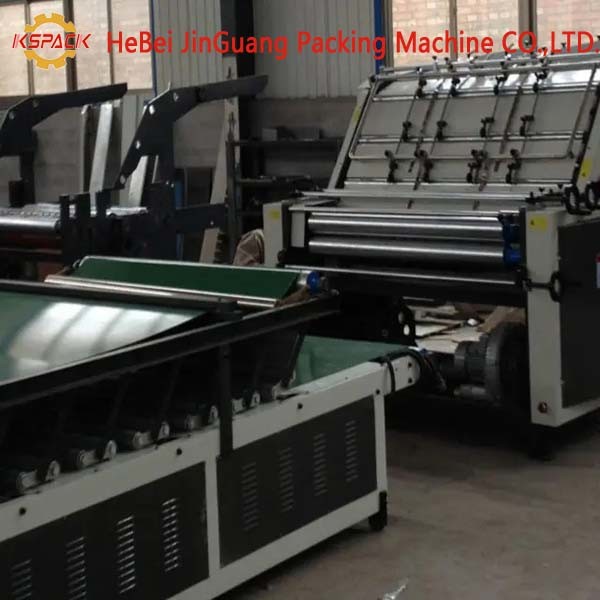

JGFM-L Automatic flute laminating machine
1.Machine Description:
*Suction floating feeding paper, accurate running balance. Photoelectric control to avoid single-sheet walking.The machine adopts the prepush position:the paper and corrugated fit error range is +/-1.5mm.
2.Machine Function:
*The machine adopts unique pressure spring front gauge design, which effectively reduces mechanical failure rate and ensures accurate positioning with intelligent control.
*The machine adopts frequency conversion to regulate speed. PLC centralized control,module conversion, operation control standard
*Double servo control is adopted to realize the timeliness and accuracy of the base paper to the front gauge, so as to ensure the accuracy of the machine under the operating condition
*After balancing treatment and testing, the steel roller, coupled with the tightening assembly process, effectively improves the mechanical stability. In addition, when the main transmission is driven by the timing belt, the bottom paper part directly absorbs the air and delivers the paper, effectively improving the operating accuracy and speed of the machine
* Adopt the page control system to automatically recycle the glue, which greatly reduces the labor intensity.
*The machine adopts all ISO9001 standard inspection of materials, with high quality and solid durability. Key parts such as bearings are imported
*Independently develop a powerful FEIDA paper with precoded paper device to reduce downtime and improve work efficiency
*The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm)
