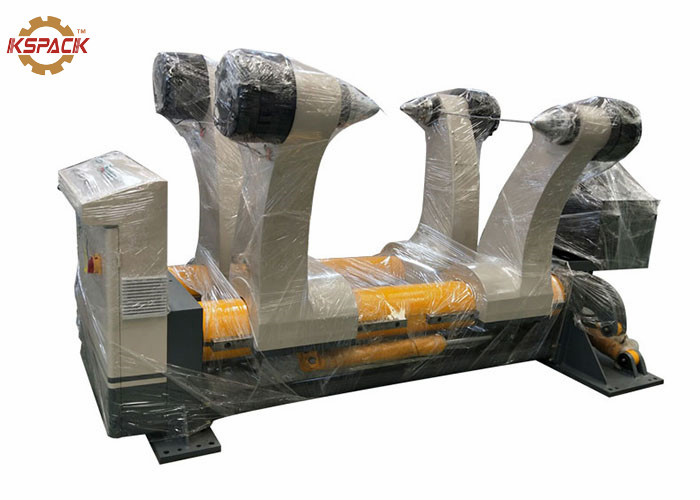

Industrial Paper Roll Stand / Hydraulic Mill Roll Stand For Craft Paper Coil

Name: Industrial Paper Roll Stand Hydraulic Mill Roll Stand For Craft Paper Coil
Brand: KS-1800
Price: 1 USD

Buy cheap Industrial Paper Roll Stand / Hydraulic Mill Roll Stand For Craft Paper Coil product

Brand Name : KS-1800

Model Number : Customized

Certification : CE,ISO

Place of Origin : China (Mainland)

MOQ : One set

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Delivery Time : 3 days

Packaging Details : Machine corvered with plastic film , packed in wooden case box

Price : Negotiable

Air compressor work pressure : 0.4-0.8mpa

Paper stand action model : Fully hydraulic model

clamp head size : 3 inch

power : 380V/50HZ

Brakes type : Multi joint brakes

Max paper roll diameter : 1500mm

Contact Now

Industrial Paper Roll Stand / Hydraulic Mill Roll Stand For Craft Paper Coil

1.Hydraulic Shaftless Mill Roll Stand Machine Structural Feature

1)Symmetric structure

2)Hydraulic control for paper mill roller uo- down , clamp- open and centering Or motorized clamp- open and centering

3)Using multi-point brake which imports from Italy and automatic expansion springiness chucks , reduce paper waste

4)Expanding head with jam, head size is 3 inch or 4 inch

5) Voltage can be made according to customer request

2. Main Characters for Hydraulic Mill Roll Stand

1)Work pressure(Mpa):16---18Mpa

2)Hydraulic cylinder work scope( lifting ):￠100×440mm

3)Hydraulic cylinder work scope (clamping / traverse ) :￠70×700m

4)Hydraulic station motor power:5KW /short time/(S2) work standard/Rated voltage and

Frequency 380V 50Hz .

5)Hydraulic station solenoid valve voltage:220V ,50 Hz

3.Brand for main purchased parts , raw material and origin

Name of main parts	Brands or place of origin	Material
Main shaft	Tiangang production	Diameter 219mm
Swing Arm	Production by own	Casting
Wall board	Jiguang produce	Q235A Welding parts
Bearing	HRB,ZWZ,LYC
Electrical appliance	chit

4.Hydraulic Mill Roll Stand Machine in Stock

Industrial Paper Roll Stand / Hydraulic Mill Roll Stand For Craft Paper Coil
