Red Corrugated Box Printing Machine Corrugated Cardboard Sheet Automatic Feeder for Chain Speed Printer

Name: Red Corrugated Box Printing Machine Corrugated Cardboard Sheet Automatic Feeder for Chain Speed Printer
Brand: JInguang
Price: 1 USD

Buy cheap Red Corrugated Box Printing Machine Corrugated Cardboard Sheet Automatic Feeder for Chain Speed Printer product

Brand Name : JInguang

Model Number : JGY-2-N

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram

Supply Ability : 30 set each month

Delivery Time : 30-40 work day

Packaging Details : wooden case pallet or plastic flim

Feeder type : Normal type

Sheet size adjust : Single operator

Transmission shafts : Grooved

Control : PLC control

Machine speed : 0-60 pcs / min

Match : Match up with nanual printer

Style : Vacuum style

Automatic degree : Automatic

Contact Now

Corrugated Cardboard Sheet Automatic Feeder for Chain Speed Printer

1. Machine Function

The cardboard size adjustment is completed using a screw roller system that can be performed by a single operator. The PLC auto program control of the equipment allows for fast and easy input of parameters for minimal stress and great efficiency. The double stretch power control is convenient and reliable

2.Technical Parameter

Machine model	JGY-2-N
Type of the machine	1600-3000mm
Machine speed	0-60 pcs /min
Max height of push space	200 mm
Max height of paper board	270 mm
Brand of the electrical appliance	Siemens
Power of the dynamo	2.2 KW
Draft power	0.8 KW
Wall board	20 mm
Conveyor belt	wear-resisting

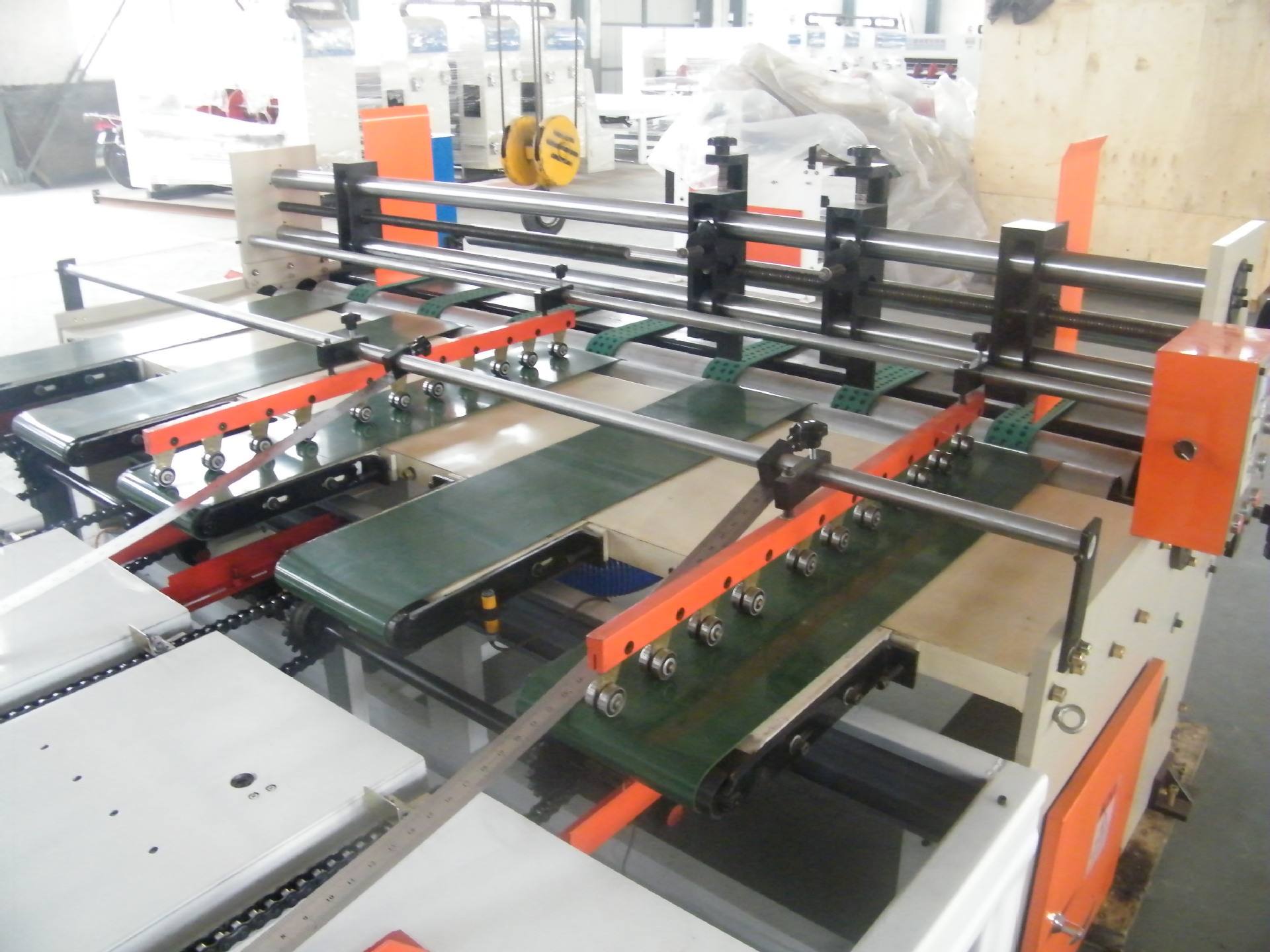

3.Machine Photo

Red Corrugated Box Printing Machine Corrugated Cardboard Sheet Automatic Feeder for Chain Speed Printer
