Full Automatic Servo Motor 600l Corrugated Partition Slotter

Name: Full Automatic Servo Motor 600l Corrugated Partition Slotter
Brand: KSPACK
Price: 20000 USD

Brand Name : KSPACK

Model Number : 600L

Certification : CE ISD

Place of Origin : China

MOQ : 1

Price : 20000 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10 Set /Month

Delivery Time : 30 work days

Packaging Details : wooden case

Name : corrugated partition slotter machine

Size : 600L

Automatic type : Full automatic

clapboard No. : 1-21

Inserting : double-position; Sheets Composing: Decussatio

Electric System : PLC、human machine interface 、 Servo control

AC Contactor : Schneider

Touch Screen : Schneider

PLC : Schneider

Proximity switch : SICK

Contact Now

Full Automatic Servo Motor 600L Corrugated Paperboard Partition Assembly Machine

1.The Techncial parameter of Corrugated Partition Slotter Machine

Name	/Unit	Data
Horizontal inserting width: A	mm	120~900
Lengthways sheets length: B	mm	210~450
Clapboard Height: C	mm	85~300
Lengthways clapboard distance: D	mm	20~400
Horizontal clapboard distance: E	mm	45-850
Lengthways sheets No.	片	1-6
Horizontal clapboard No.	片	1-21
Carton inserting mouth width:F	mm	＞board thickness
/Carton thickness:G	mm	1.5~8mm

2.Custoer Prepare of Corrugated Partition Slotter Machine

Air pressure: Work normal 0.4-0.8Mpa

Power Requirements: 380v 50Hz Three-phase four-wire syste

Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline.

Test machine use die-cutting-clapboard

3.The Spare Part of Corrugated Partition Slotter Machine

Name	Brand
Servo Motor	Schneider
PLC	Schneider
Servo Driver	Schneider
Inverter	Schneider
Touch Screen	Schneider
AC Contactor	Schneider
Reduction box	APEX
Draught fan	Popula
Vacuum pump	Air-pump
Proximity switch	SICK
Roller motor	Dedong Electric
Cylinder	AirTAC
Solenoid valve	F-tec
Flow control valve	SNS
Clean air conponent	SNS
Oil-water separator	SNS

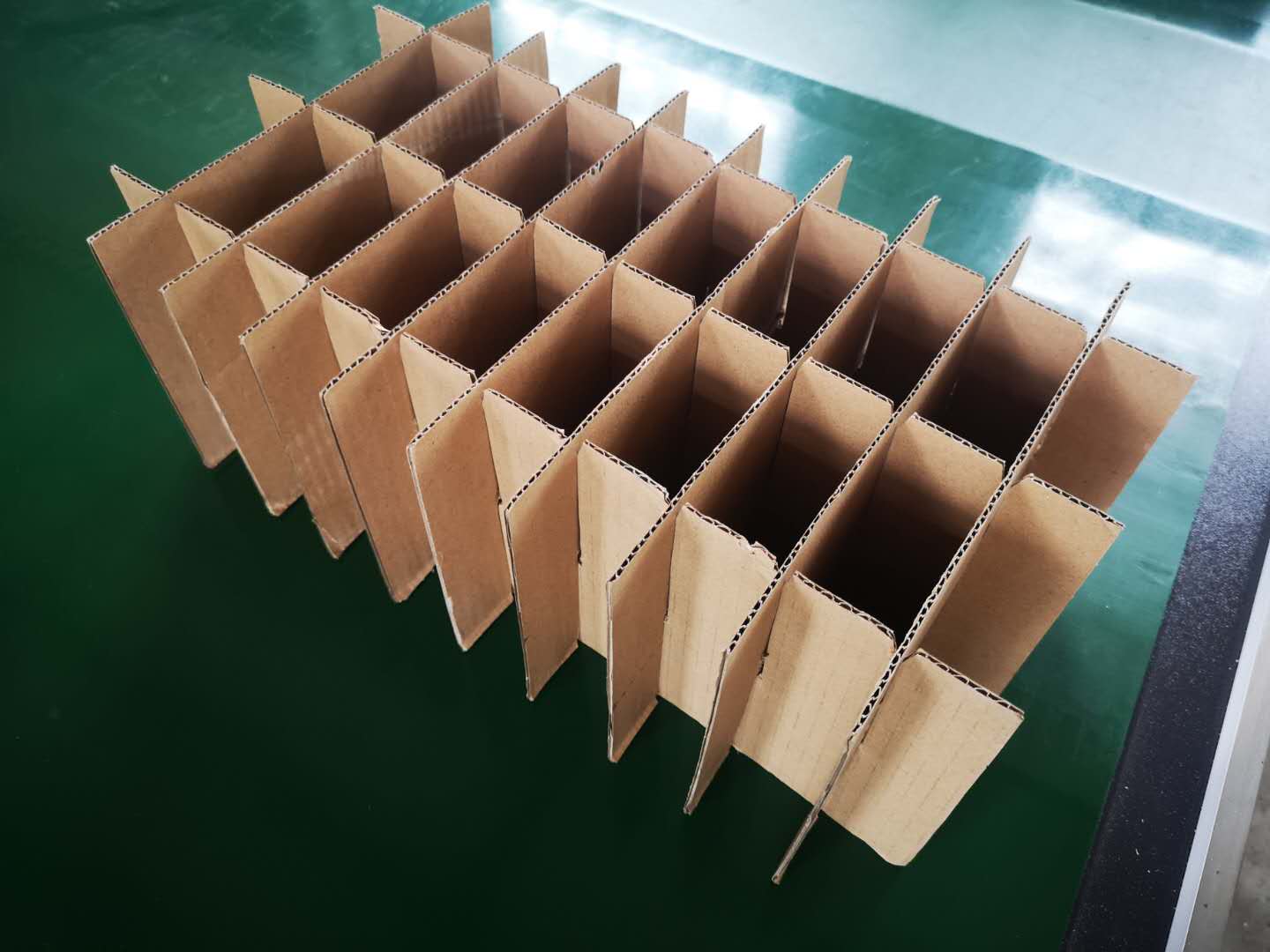

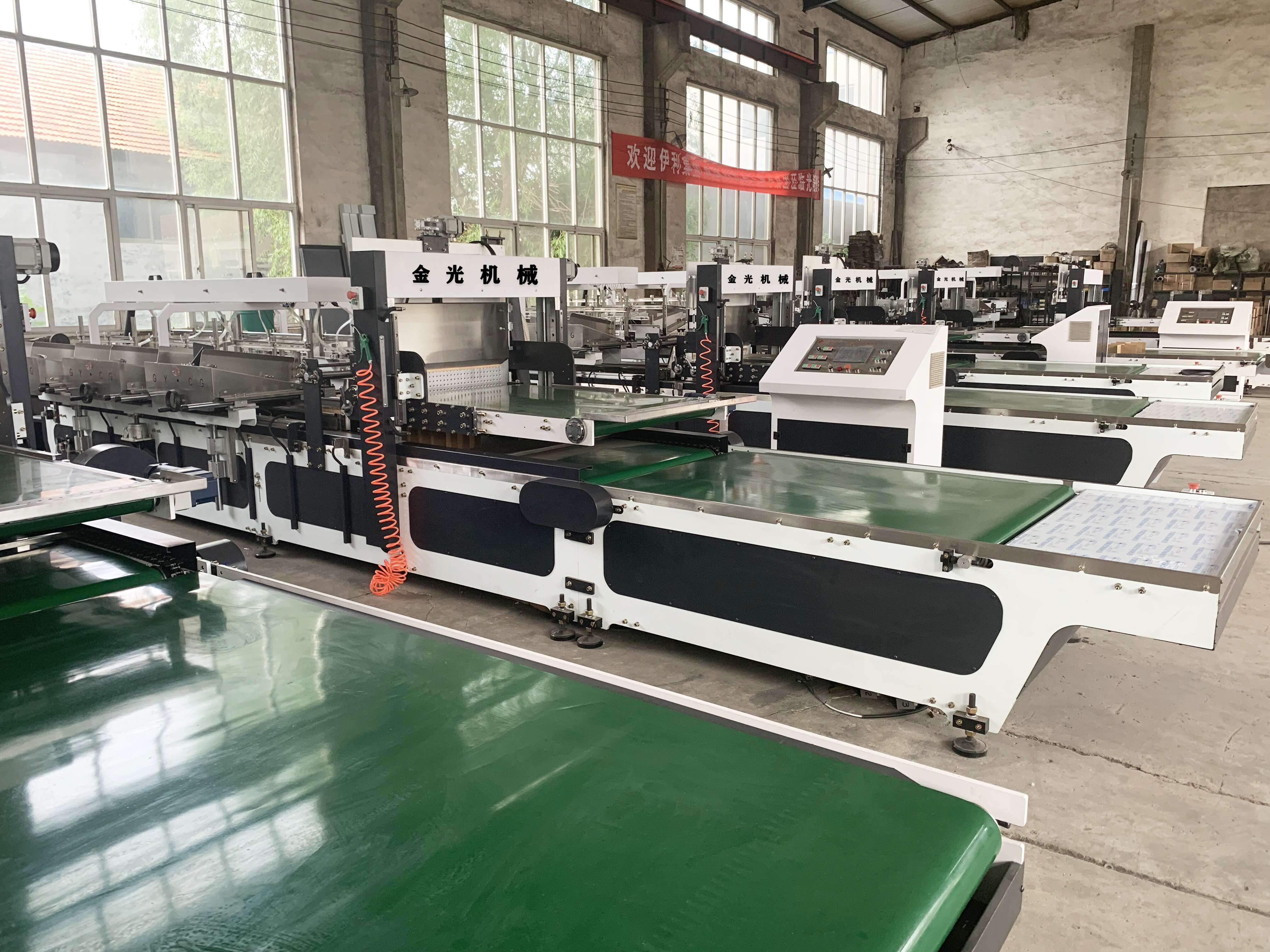

4. The Machine Photos of Corrugated Partition Slotter Machine

Full Automatic Servo Motor 600l Corrugated Partition Slotter
