Automatic New Condition 450-2L Partition Assembly Machine Partition Slotter

Name: Automatic New Condition 4502L Partition Assembly Machine Partition Slotter
Brand: kspack
Price: 1 USD

Brand Name : kspack

Model Number : 450-2L

Certification : CE ISO

Place of Origin : Hebei Province, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 set per month

Delivery Time : 35-60 days

Packaging Details : in skin ,in wooden , in container

name : partition assembly machines

color : according to customer

user : Automatic inserting each kinds clapboard and cardboard block

ksj450-3L size : 7.3×2.0×1.9 m

Total power : 7.5 kw

staff : more than 100

Contact Now

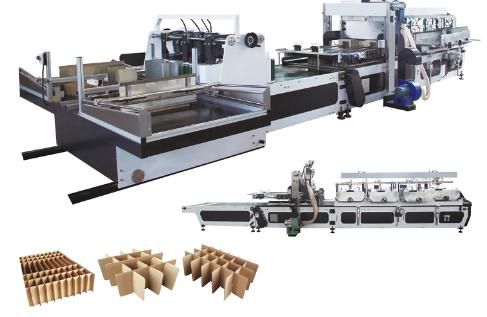

Automatic new condition 450-2L partition assembly machine Partition Slotter

Specification List

Item

Parts name

Qty

Remarks

Automatic inserting machine

1unit

Inserting : double-position;

Sheets Composing: Decussation

Sheet Delivery

1 unit

Pneumatic System

1 set

customer prepare air pump

Electric System

1 set

PLC,human machine interface ,

Servo control

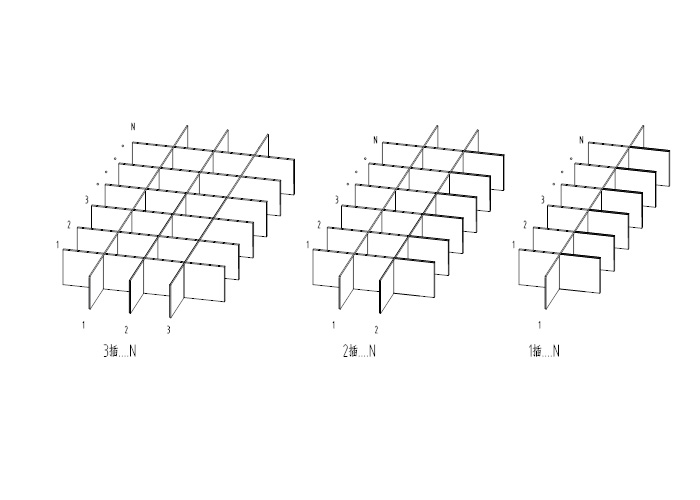

Partitions Form Sketch

The testing partition board should meet the following requirements

Partition board molding: die cutting molding

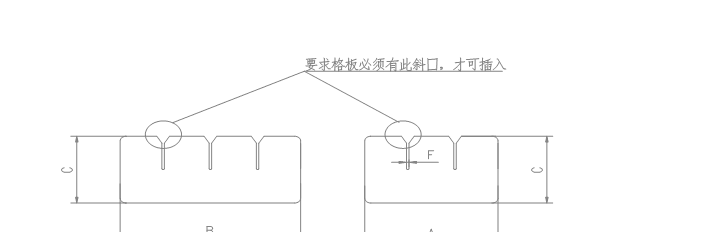

Partition board interval should have bevel/oblique opening(as shown in the following figure)

Automatic New Condition 450-2L Partition Assembly Machine Partition Slotter

Customer Prepare

Air pressure: Work normal 0.4-0.8Mpa

Power Requirements: 380v 50Hz Three-phase four-wire syste

Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline.

Test machine use die-cutting-clapboard

Machine use lubricate oil and grease

Foundation work.

Structure Character

Automatic New Condition 450-2L Partition Assembly Machine Partition Slotter

* Lengthways and horizontal sheets do decussation inserting.

* Automatic inserting each kinds clapboard and block

Automatic New Condition 450-2L Partition Assembly Machine Partition Slotter
