450-2L Cardboard Clapboard Assembler Assembly Machine Partition Slotting Machine

  • 1
  • 2

Brand Name : kspack

Model Number : 450-2L

Certification : CE ISO

Place of Origin : Hebei Province, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 set per month

Delivery Time : 35-60 days

Packaging Details : in skin ,in wooden , in container

name : partition assembly machines

user : Automatic inserting each kinds clapboard and cardboard block

Servo Motor : Schneider

ksj450-3L size : 7.3×2.0×1.9 m

Total power : 7.5 kw

staff : more than 100

Contact Now

450-2L Cardboard Clapboard Assembler Assembly Machine Partition Slotting Machine

Specification List

Item



Parts name



Qty



Remarks
1



Automatic inserting machine

 1unit



Inserting : double-position;

Sheets Composing: Decussation
2



Sheet Delivery



1 unit


3



             Pneumatic System



1 set



customer prepare air pump
4



             Electric System



1 set

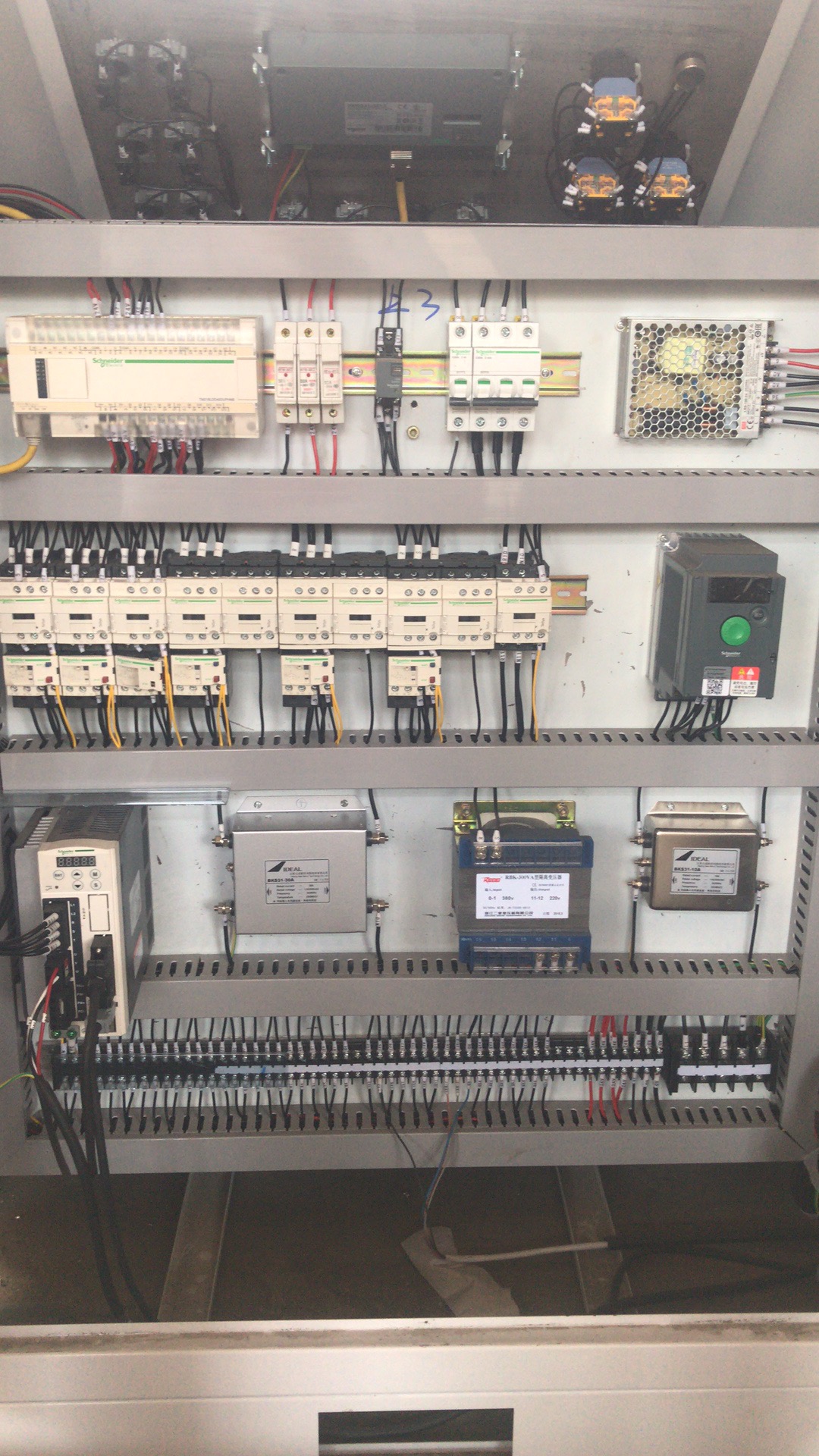

PLC,human machine interface ,

Servo control



Partitions Form Sketch

Structure Character

450-2L Cardboard Clapboard Assembler Assembly Machine Partition Slotting Machine

* Lengthways and horizontal sheets do decussation inserting.



* Automatic inserting each kinds clapboard and block



Automatic cardboard assemble machine parts list:



Number Name Quantity Remark
1 Auto insert cardboards device 1set

Cardboard output: double station

Cardboard assemble: cross
2 Transport cardboard device 1set
3 Pneumatic system 1set Air compressor machine ,customer prepare
4 Electrical equipment 1set PLC,Servo system control



The technical parameter:



Name Size Data
Crosswise insertion width A mm KSJ 450-2 model
120-700 Single out
120-320 Double out
KSJ 450-3model
120-900 Single out
120-420 Double out
Crosswise feeding cardboard length B mm 120-450
Grating height C mm 80-300
lengthways cardboard insertion spacing D mm 20-250
Crosswise cardboard insertion spacing D mm KSJ 450-2 model
50-115 2insert double out
50-230 2 insert single out
50-250 4 insert single out
KSJ 450-3model
50-110 3 insert double out
50-225 3 insert single out
50-128 6 insert single out
Cardboard slot width mm >cardboard thickness
Cardboard thickness mm 1.5-8mm

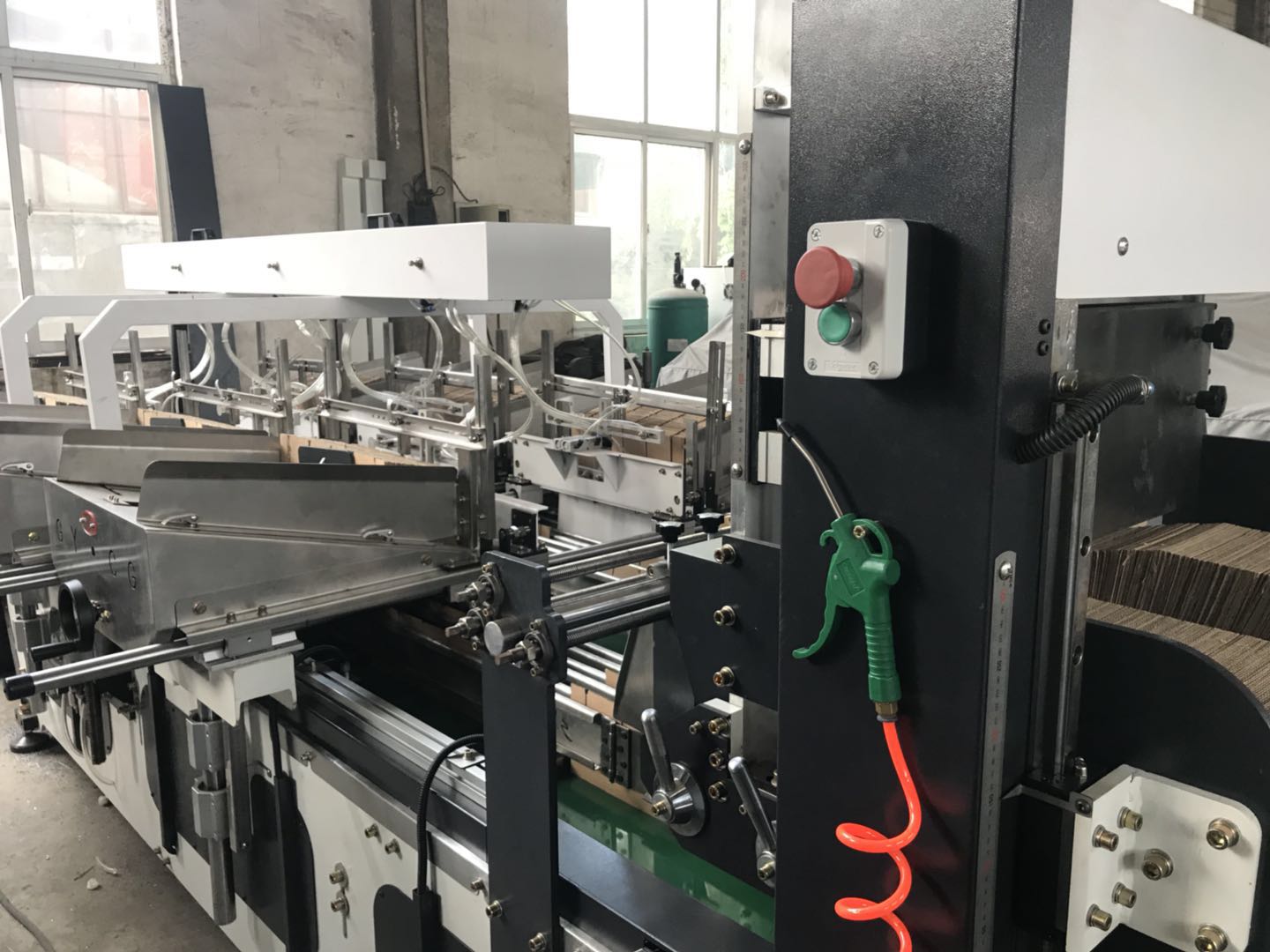

450-2L Cardboard Clapboard Assembler Assembly Machine Partition Slotting Machine

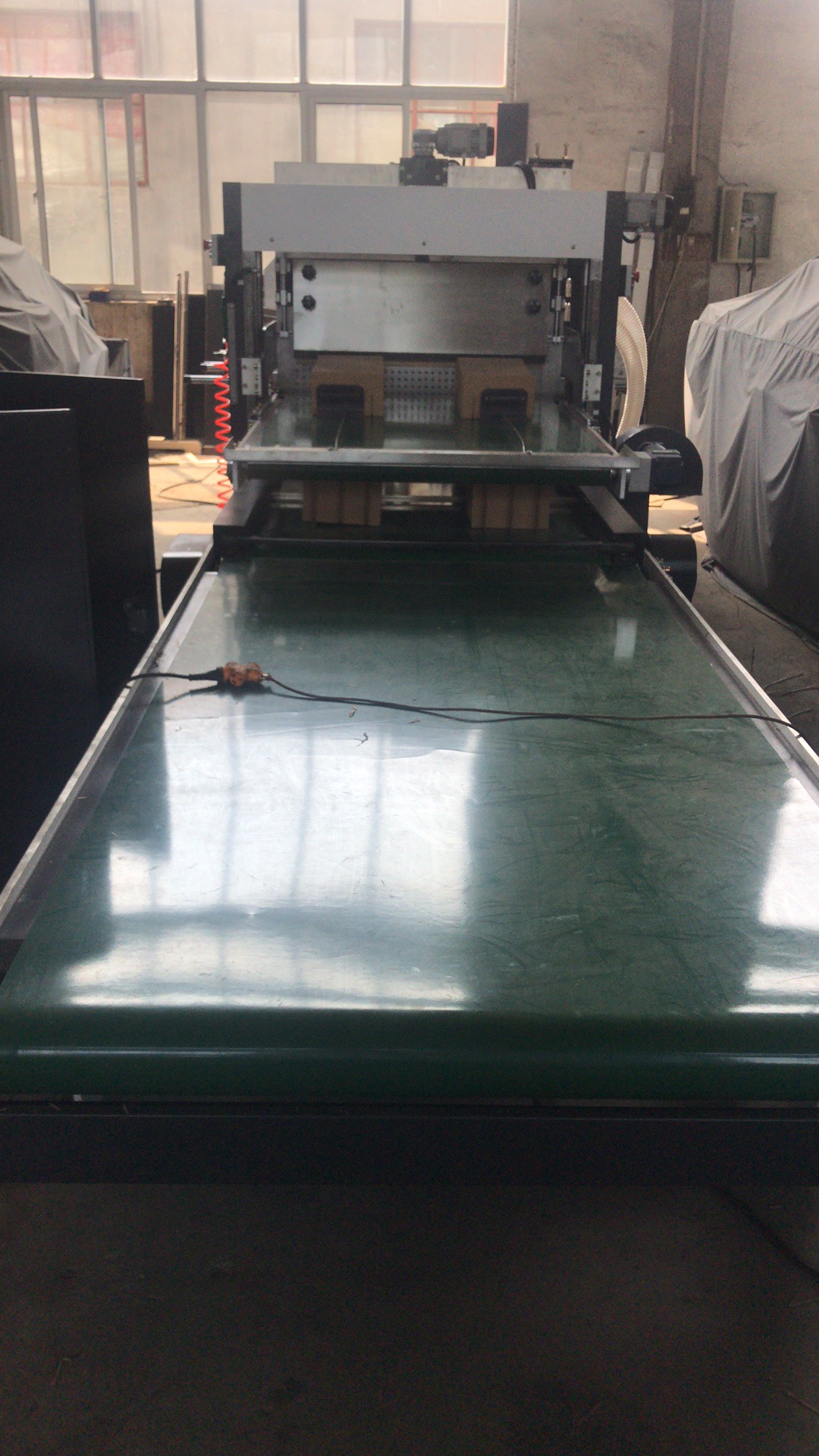

450-2L Cardboard Clapboard Assembler Assembly Machine Partition Slotting Machine

450-2L Cardboard Clapboard Assembler Assembly Machine Partition Slotting Machine
